Machine features
1. LaserMen double head laser engraving cutting machine for nonmetal. with double heads working, more efficiency.
2. Two co2 glass laser tube, laser power can be with 80w+80w, 100w+100w, 150w+150w, 180w+180, 80w+150w, 80w+180w.
3. There are 2 sizes for your choice:130x90cm and 160x100cm.
4. Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
5. Double heads working, more efficiency, can cut and engrave wood, acrylic, MDF, plastic, leather etc.
6. Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
Technical parameters
| Model | LM-1390 double heads | LM-1610 double heads |
| Laser type | CO2 glass laser tube, wavelength 10.6μm, water-cooled | |
| Working area | 1300*900mm | 1600*1000mm |
| Laser power | 100w+100w, 130w+130w, 150w+150w, 150w+80w, 180w+80w, 240w+80w, 300w+80w | |
| Engraving speed | 0-1200mm/sec | |
| Cutting Speed | 0-500mm/sec | |
| Repeating location | ±0.01 | |
| Transmission type: | Belt transmission | |
| Driving system | Stepper motor | |
| Machine table | Blade table (alternative: honeycomb table) | |
| Graphic format supported | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw | |
| Software supported | CorelDraw, AutoCAD | |
| Control system | RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable | |
| Minimum letter size | Chinese 2.0x2.0mm, English 1.0x1.0mm | |
| Working voltage | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |
| Working condition | Temperature 0~45 Celsius; Humidity 5%~95% no condensation | |
| Graphic format supported: | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw | |
Video

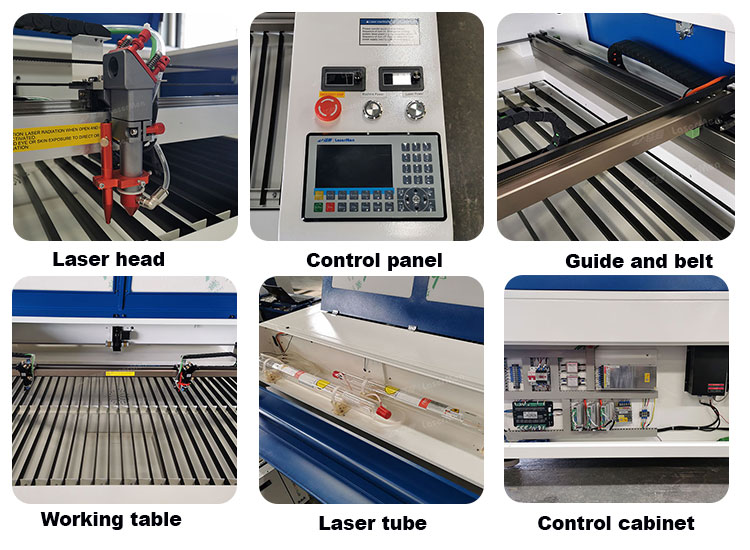

Machine details

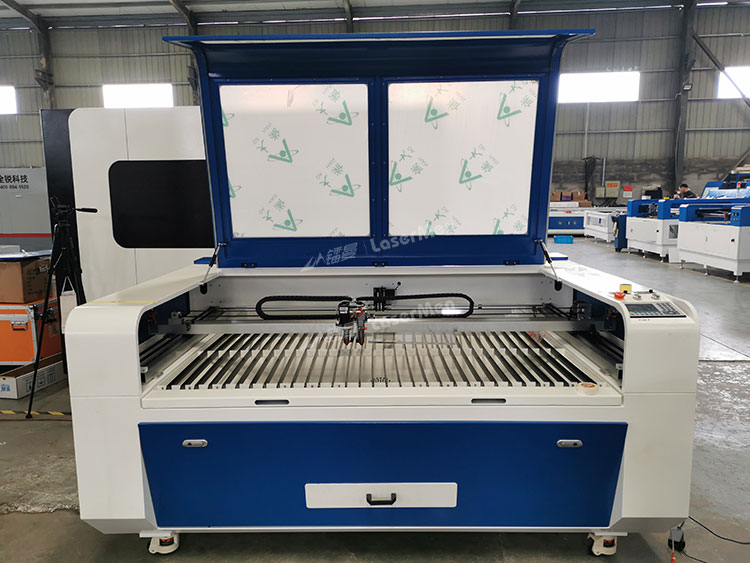

Details of 1610 double heads wood acrylic mdf leather colth plywood laser cutter

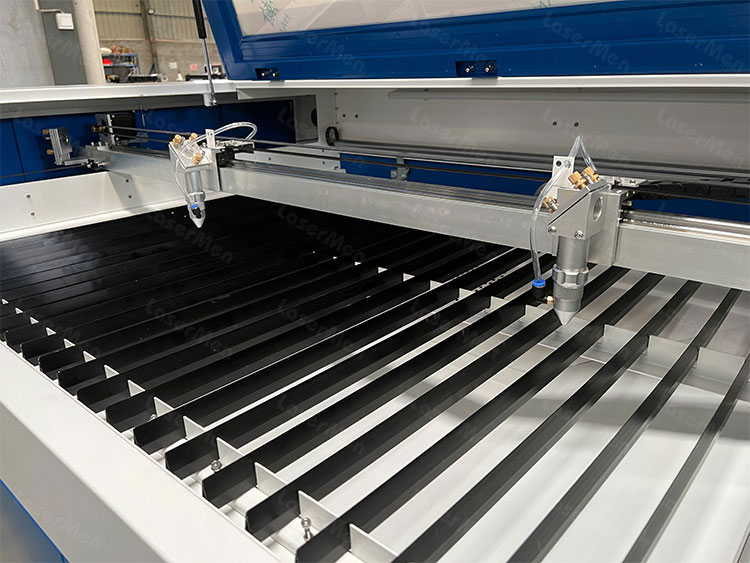

* Laser tube of nonmetal laser cutter
Long service life of the laser tube, applicable to the cutting of cutting and engraving nonmetal materials, such as wood mdf leather acrylic, etc.
* Guide of co2 laser cutter engraver machine
The linear guide rail can achieve a long life with high speed, high accuracy and smooth linear motion.
* Stepper motor of laser cutter engraver machine
Low noise, low vibration, smooth running, high torque;
Higher acceleration, better accuracy;
Better Acceleration performance;
* Ruida control system of laser cutter engraver machine
Simple and easy operation;
13 kinds of languages can be choice;
Parameters can be stored;
Support offline use and wifi.
Machine Application
Double heads co2 laser engraving cutting machine for nonmetals is widely applied for engraving and cutting various non-metal materials, such as: acrylic, wood, plywood, mdf, double-layer sheet, cloth, leather, foam, glass, stone, etc.
It is popular in the industries of advertising signs, arts and crafts, architectural models, wine bottle customizing, toys, chothing, shoes, bags, etc.
