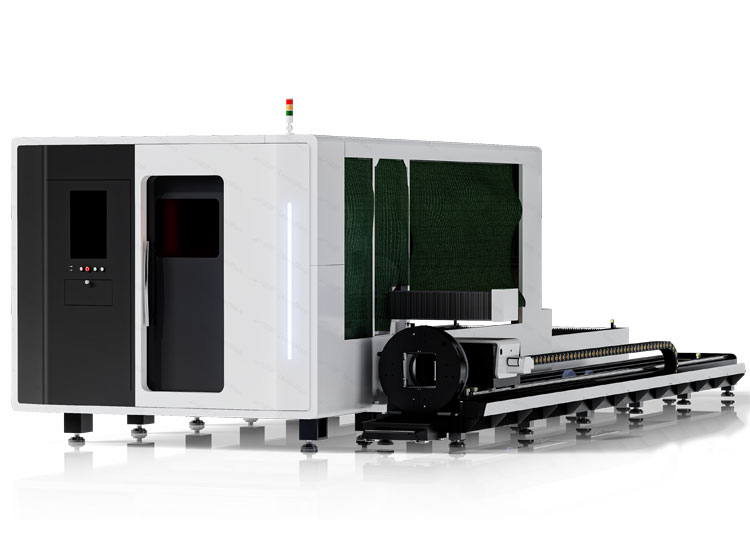

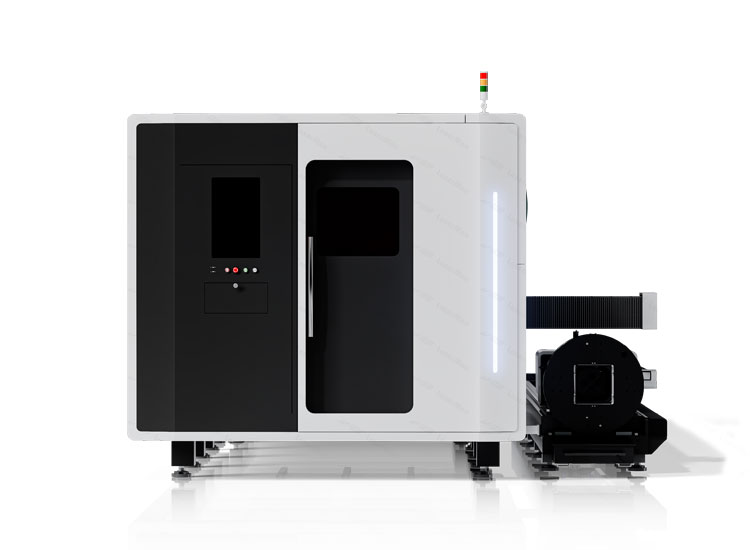

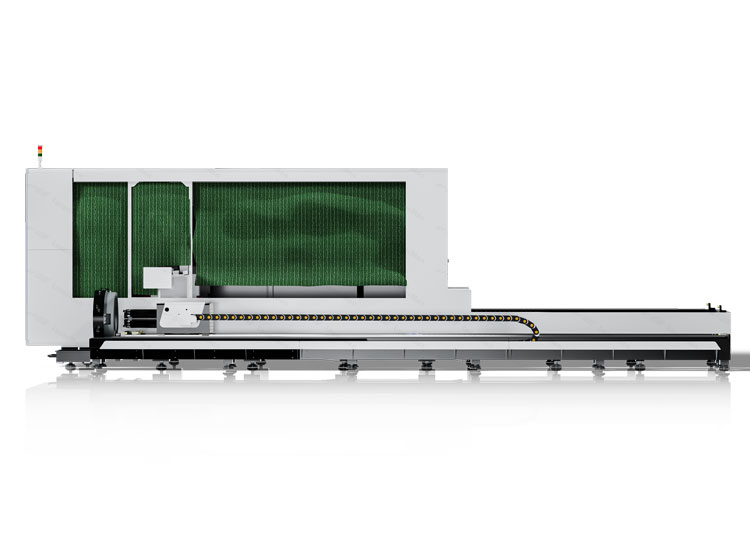

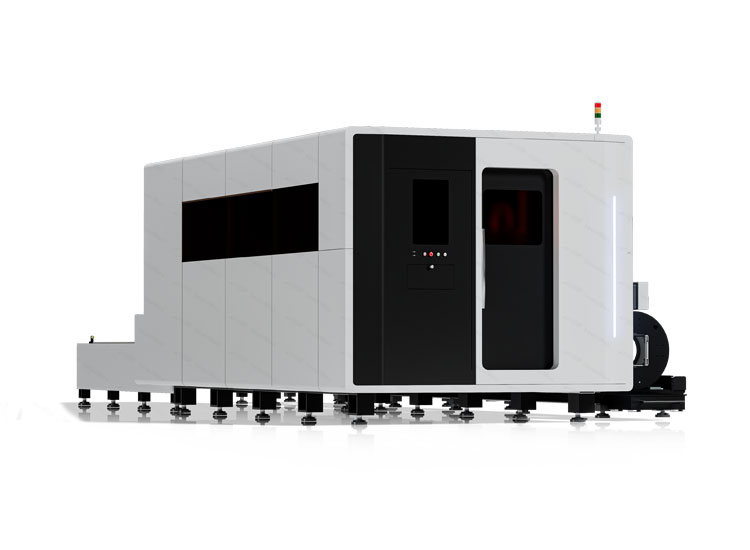

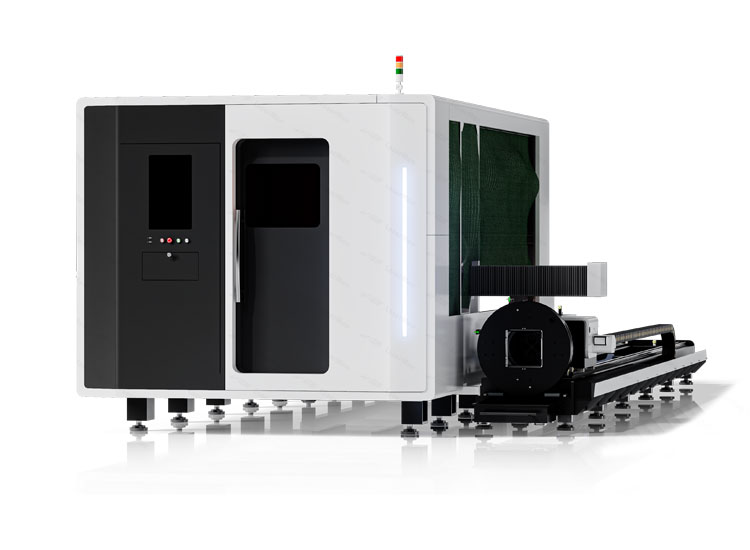

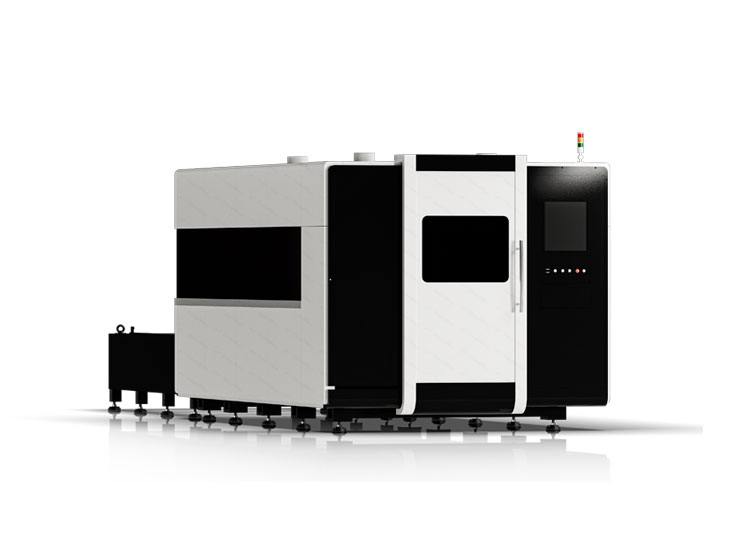

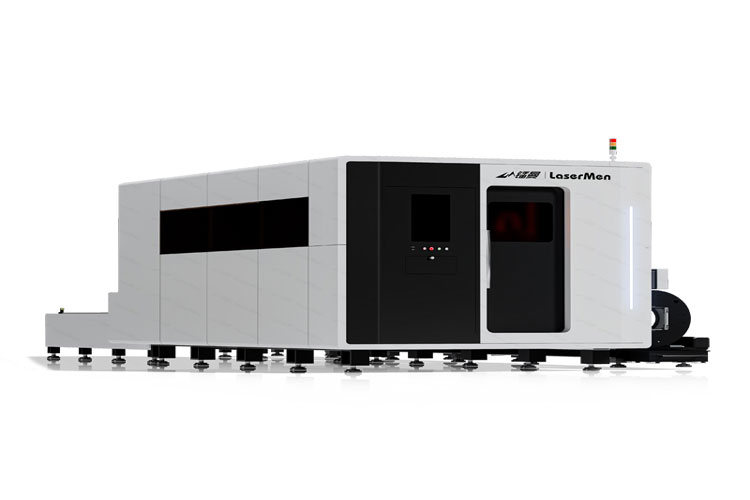

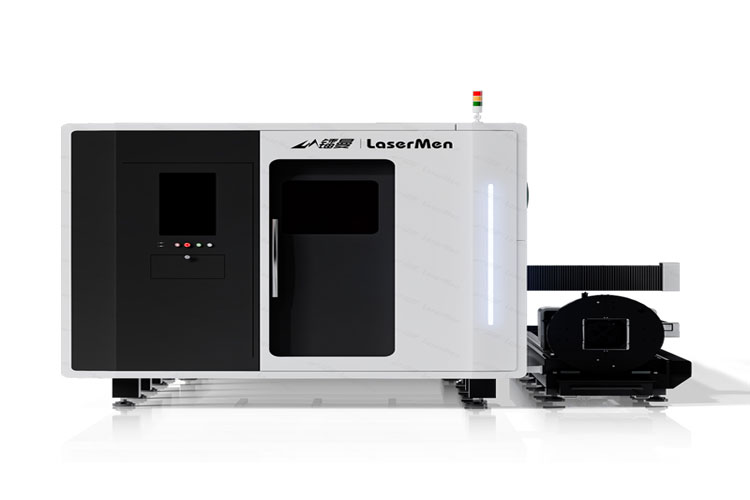

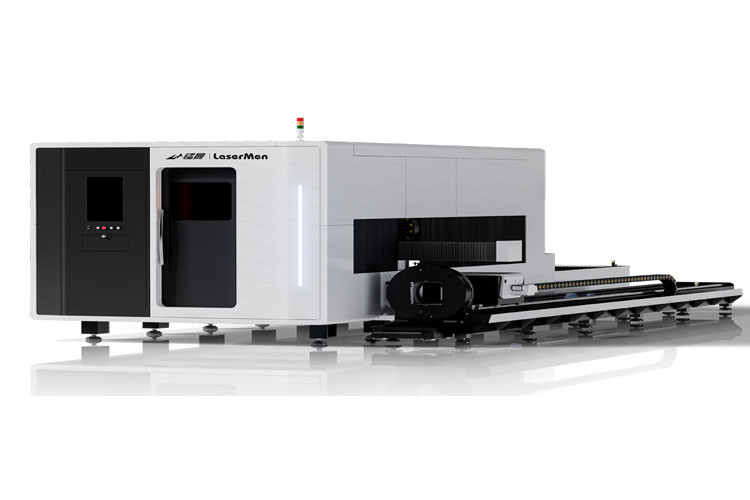

Machine features
1. With a fully enclosed design, it is more safe.2. The smoke produced by cutting can be removed inside, it's non-polluting and environmentally friendly.
3. Multifunction fiber Laser cutting machine can cut metal plate and metal tube.
4. With exchanging worktable, easier to loading and unloading the metal sheet.
5. Cost-saving and high performance working, it has many uses and can save the space of more than 50%, which effectively improve productivity.
6. Machine adopts CYPCUT control system, two software (CYPCUT software for metal sheet cutting, Tubepro software for metal tube cutting).
7. The Rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized.
Technical parameters
| Model | LM-1530EHT |
| Laser type | Fiber laser, 1080nm |
| Laser power | 1500W, 2000W, 3000W, 4000W, 6000W, 8000w |
| Working area | Sheet: 1500mm x 3000mm Tube:220mm diameter x 3 meters or 6 meters length |
| Min Line width | 0.1mm |
| Positioning accuracy | 0.01mm |
| Max. Cutting speed | 60m/min |
| Max acceleration | 1.5G |
| Transmission type | Precision dual gear rack transmission |
| Driving system | Serve motors |
| Cutting thickness | Depending on laser power and material |
| Assisting gas | Compressed air, oxygen and nitrogen |
| Cooling mode | Industrial circulation water chiller |
| Visual positioning | Red dot |
| Machine weight | Net 4500kgs |
| Working voltage | 3 phase 380V 50HZ/60HZ |
Video

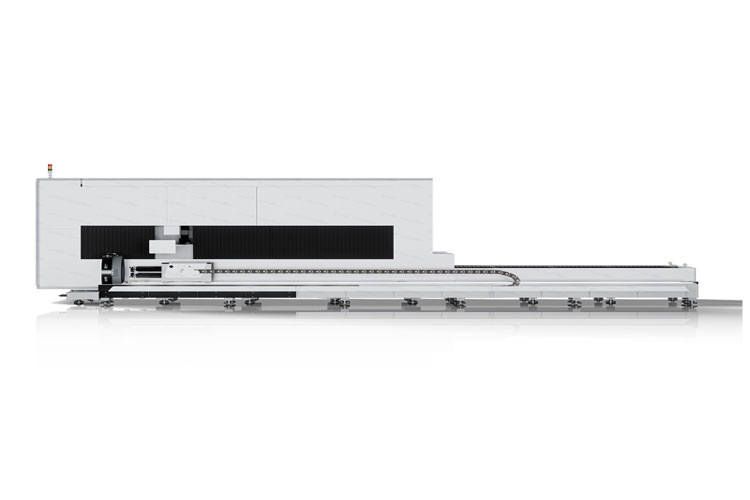

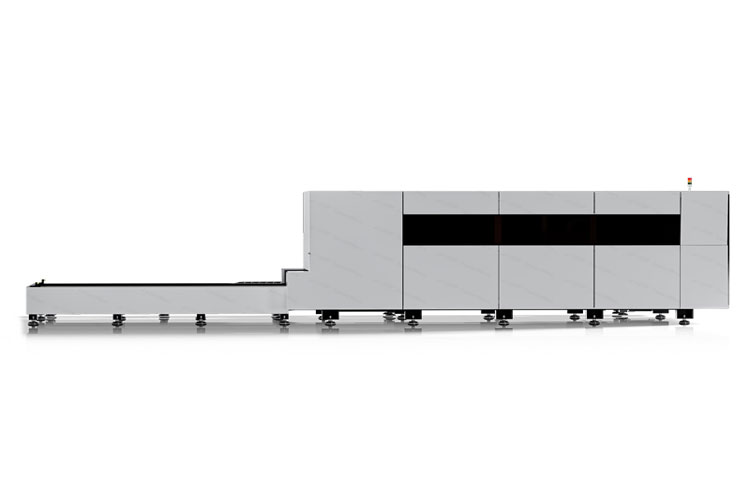

Machine details
Machine Application
Metal Sheet Laser Cutting Machine---Applicable MaterialsCarbon steel, stainless steel, alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.
Tube Fiber Laser Cutting Machine---Application Area
Machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal
enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts
and other metal cutting fields.
