Machine features

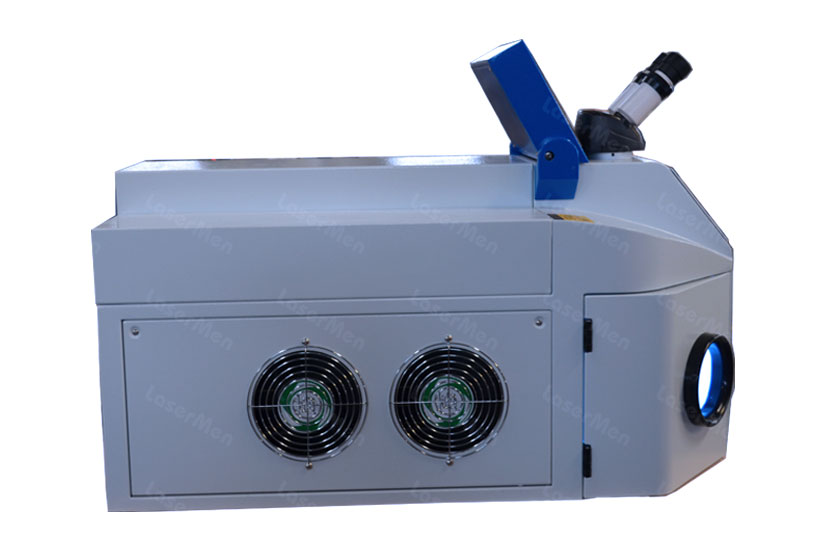

Desktop type jewelry Yag laser welding machine
1.Small machine size, easy to move, reduce the work space.
2.Easy operate, a key switch, simplify the start-up process equipment.
3.High precision for metal parts welding, especially for jewelry industry, such as silver, gold etc.
4.High welding speed with great efficiency.
Technical parameters
|
Model |
LM-JW200 |
LM-JW300 |
|
Laser Wavelength |
1064nm |
1064nm |
|
Spotlight Cavity Reflector |
Metal Cavity |
Metal Cavity |
|
Average Pulse Energy |
≤200W |
≤300W |
|
Maximum peak power |
≤4.5KW |
≤7kw |
|
Pulse Frequency |
0-10Hz |
0-20Hz |
|
Pulse Length |
0.1-5.0ms |
0.1-10.0ms |
|
Spot diameter |
0.1-2.0mm |
0.1-2.0mm |
|
Observation rate |
10 times |
10 times |
|
Working distance |
90mm |
90mm |
|
Color |
White with Red or White with Blue |
White with Red or White with Blue |
|
Aim Operation |
Round Point Cursor |
Round Point Cursor |
|
Net weight |
60Kg |
145kg |
Video
Machine details
1.Welding spot size can be adjusted for different welding materials and welding size.
2.200W and 300W laser source can be optional.
3.Different languages can be selected.
Machine Application

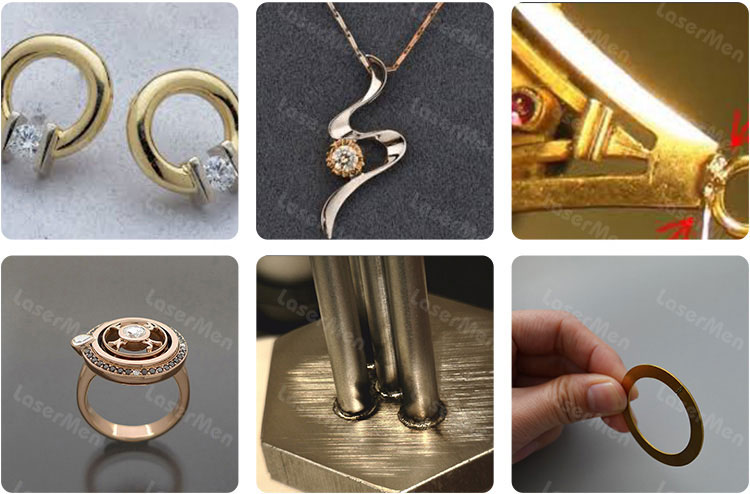

Jewelry Yag laser welding machine can weld different metal materials, especially for the precision small metal parts, such as gold, silver, platinum, stainless steel,titanium, alloys etc.
